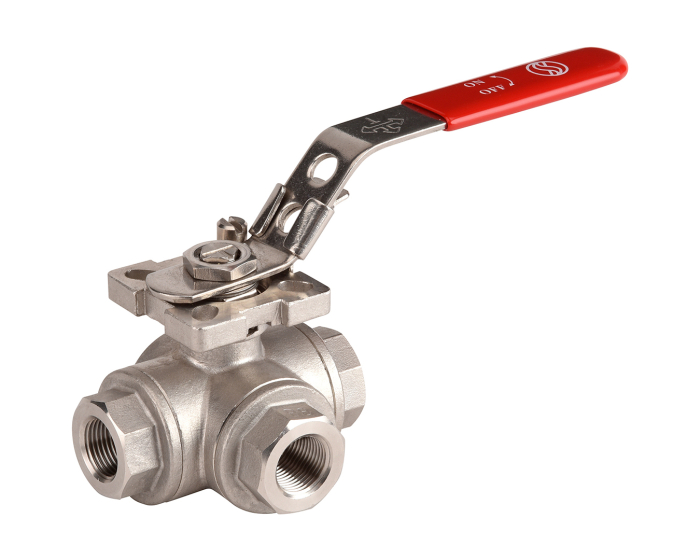

Stainless steel ball valve 781 3 way T-port BSP 1/4''

References 780-781: stainless-steel three-way threaded ball valves Our references 780 and 781 are stainless-steel three-way threaded ball valves. Three-way ball valves are mainly used to mix or distribute flows between three pipes. The valves can be mounted with a L-shaped ball or T-shaped ball. Depending on the port and position of the ball, three-way ball valves have various functions: Divert a fluid by closing an outlet pipe to redirect it to another pipe, closed in the previous position Mix liquids providing from two pipes into a third one Distribute a fluid from a single pipe into two outlet pipes Our references 780 (L port) and 781 (T port) are made up of CF8M stainless-steel body and ball, and of a PTFE filled with 15% glass fibre seat. They have threaded BSP ends and come in multiple sizes (1/4" to 2"). These reduced-bore ball valves ensure tightness on three ways as they have four seats. They are fitted with a number of specific technical items: Double antistatic device (small balls between stem and body and between stem and ball) Locking device Anti-blowout stem ISO 5211 mounting pad Our stainless-steel three-way threaded ball valves allow a maximum pressure of 40 bar and temperatures ranging from -25 °C up to +180 °C.
